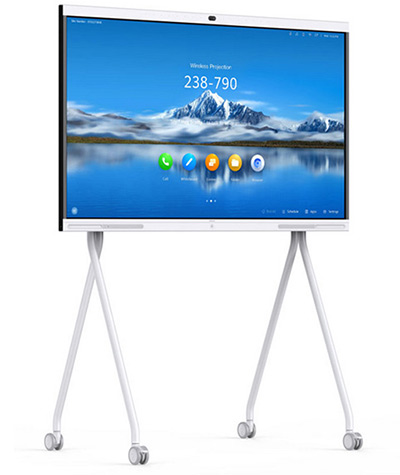

HUAWEI IdeaHub

Interactive Whiteboard - Smart Board

HUAWEI IdeaHub — a productivity tool for the smart office — bundles intelligent writing, High Definition (HD) video conferencing and wireless sharing. A Red Dot Award 2020 winner, IdeaHub is designed to suit any environment. Effortlessly turn conference rooms, executive offices, and open areas into smart spaces.

The Elegance of Simplicity

A sleek, contemporary, user-centric design. A slender, minimalist stand. HUAWEI IdeaHub effortlessly integrates into any space.

Say Goodbye to cables

Combined 4K and H.265 technologies deliver a crisp, clear, smooth experience. Simply tap to share what's on your laptop or phone.

As Easy as Pen and Paper

With 35 ms ultra-low writing latency, enjoy a smooth, ultra-responsive writing experience.

Tap to Start Meeting

A Dual-System-on-a-Chip (SoC) design combines independent graph computing, Artificial Intelligence (AI)-powered computing, and the audio and video code engine.

Crystal Clear

An array of 12 microphones uses beamforming technology to pick-up human voices over an 8 m radius. Wider frequency for transfers ensures crystal clear, HI-FI audio at every remote site.

Stay Connected from Anywhere

With just a single tap, send whiteboard content and fresh ideas flying from the hub to remote sites. Real-time collaboration becomes a real-world reality.

Product Specifications

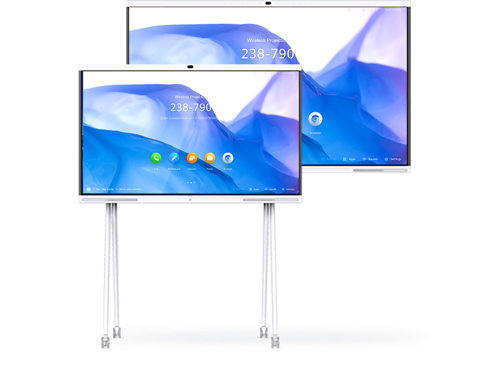

  • HUAWEI IdeaHub S
    Screen
    Size
    65-inch/86-inch
    Screen Model
    E-LED (65")/D-LED (86")
    Resolution
    4K
    Precision
    ±1mm
    Multi-touch
    20 points
    Camera
    Resolution
    1080p30
    Auto voice tracking
    x
    AutoFrame
    Ultra-wide angle
    80°
    Anti-fog, dust-proof, and anti-flicker
    Zoom
    2x digital zoom
    Speakers
    Frequency domain
    40-20kHz
    Quantity
    6
    Stereo audio
    Microphone
    Sound pickup distance
    8 m
    Sound pickup angle
    180° forward
    Quantity
    12
    Frequency domain
    20-20kHz
    Enhanced functions
    Echo cancellation, noise suppression, automatic gain control (AGC), and external microphones
    Language
    Supported
    Simplified Chinese, Traditional Chinese, English, Spanish, French, Russian, Japanese, German, Portuguese, Italian, Arabic
    • Dimensions and weight
      65-inch
      Package dimensions (H x W x D)
      1720 mm x 1114 mm x 246 mm
      HUAWEI IdeaHub dimensions (H x W x D)
      1492.5 mm x 931.1 mm x 71 mm
      Gross weight
      62kg
      Net weight
      50kg
    • Dimensions and weight
      86-inch
      Package dimensions (H x W x D)
      2090 mm x 1411 mm x 336 mm
      HUAWEI IdeaHub dimensions (H x W x D)
      1963.8 mm x 1195.1 mm x 95 mm
      Gross weight
      111kg
      Net weight
      90kg

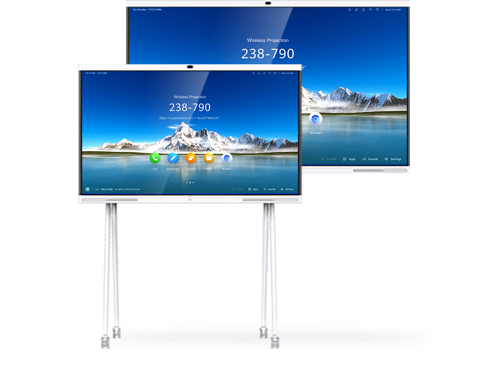

  • HUAWEI IdeaHub Pro
    Screen
    Size
    65-inch/86-inch
    Screen Model
    E-LED (65")/D-LED (86")
    Resolution
    4K
    Precision
    ±1mm
    Multi-touch
    20 points
    Camera
    Resolution
    4K30
    Auto voice tracking
    AutoFrame
    Ultra-wide angle
    80°
    Anti-fog, dust-proof, and anti-flicker
    Zoom
    2x digital zoom
    Speakers
    Frequency domain
    40-20kHz
    Quantity
    6
    Stereo audio
    Microphone
    Sound pickup distance
    8 m
    Sound pickup angle
    180° forward
    Quantity
    12
    Frequency domain
    20-20kHz
    Enhanced functions
    Echo cancellation, noise suppression, AGC, and external microphones
    Language
    Supported
    Simplified Chinese, Traditional Chinese, English, Spanish, French, Russian, Japanese, German, Portuguese, Italian, Arabic
    • Dimensions and weight
      65-inch
      Package dimensions (H x W x D)
      1720 mm x 1114 mm x 246 mm
      HUAWEI IdeaHub dimensions (H x W x D)
      1492.5 mm x 931.1 mm x 71 mm
      Gross weight
      62kg
      Net weight
      50kg
    • Dimensions and weight
      86-inch
      Package dimensions (H x W x D)
      2090 mm × 1411 mm × 336 mm
      HUAWEI IdeaHub dimensions (H x W x D)
      1963.8 mm x 1195.1 mm x 95 mm
      Gross weight
      111kg
      Net weight
      90kg

  • Dimensions and weight
    65-inch
    Package dimensions (H x W x D)
    1720 mm x 1114 mm x 246 mm
    HUAWEI IdeaHub dimensions (H x W x D)
    1492.5 mm x 931.1 mm x 71 mm
    Gross weight
    62kg
    Net weight
    50kg
  • Dimensions and weight
    86-inch
    Package dimensions (H x W x D)
    2090 mm × 1411 mm × 336 mm
    HUAWEI IdeaHub dimensions (H x W x D)
    1963.8 mm x 1195.1 mm x 95 mm
    Gross weight
    111kg
    Net weight
    90kg

Learn More

HUAWEI IdeaHub S2

New Style Smart Office Request for a quote

HUAWEI IdeaHub S2

Built on the next-gen hardware platform architecture, HUAWEI IdeaHub S2 is equipped with Bring Your Own Meeting (BYOM), HD immersive meeting quality, Wi-Fi 6 for direct projection, and ultra-low writing latency, easily adapting to mainstream cloud meeting apps. It is a perfect solution for boundless collaboration and communication to fit in any room, such as regular meeting rooms, executive offices, and open office areas.

BYOM

Bring Your Own Meeting (BYOM) with seamless transfer from personal devices to HUAWEI IdeaHub S2.

Wi-Fi 6 for Direct Projection

One-step projection using Wi-Fi Direct without the need for devices to share the same local area networka (LAN).

Collaboration Unbounded

Multi-Window and App Multiplier deliver an enriched office ecosystem.

4K Camera for Video Conferencing

A dedicated video conferencing camera and dual HD hardware codec combine to deliver low-noise, true-to-life images with consistent resolution all of the time.

AI-Powered HD Audio and Video

Voice tracking, Auto-Framing, acoustic baffle1 , 12-meter sound pickup, adaptive echo cancellation (AEC) algorithm, and DNN-based dereverberation2 for clear sound from far away.

Intelligent Whiteboard

Annotate on full screen in full color with an all-new toolbar. Writing is effortlessly smooth with intelligent recognition and ultra-low latency.

Product Specifications

  • Product Name
    HUAWEI IdeaHub S2
    Product dimensions
    (H x W x D)
    65": 947.5 mm x 1484.5 mm x 91.6 mm
    75": 1071.9 mm x 1705.7 mm x 91.8 mm
    86": 1212.0 mm x 1953.0 mm x 91.8 mm
    Net weight
    65": 35.5 kg
    75": 47.0 kg
    86": 62.0 kg
    Gross weight
    (including the package)
    65": 43.0 kg
    75": 57.0 kg
    86": 73.5 kg
    The dimensions and weight may vary with configuration, manufacturing process, and measurement method. The product height includes the camera (55 mm).
    Component
    Device
    1
    Stylus pens
    2
    Cable
    Power cable x 1
    Wall-mounted bracket
    Optional (65", 75", and 86")
    Rolling stand
    Optional (65", 75", and 86")
    IdeaShare Key
    Optional (Type-C port, support for BYOM)
    OPS
    Optional
    Screen
    Resolution
    4K (3840 x 2160 pixels)
    Backlight type
    D-LED
    Screen Lamination
    Zero-gap bonding
    Writing
    Latency
    16 ms
    Touch sensing distance
    ≤ 1.5 mm
    Intelligent writing recognition
    Supports recognition of Chinese, English, and 11 types of graphics
    Camera
    Definition
    1800 lines
    Sensor pixel size
    1.5 μm x 1.5 μm
    Lens cap for privacy protection
    Horizontal FoV
    80°
    Zoom
    2x digital zoom
    TV distortion
    <2%
    Speaker
    Frequency Domain
    80 Hz–20 kHz
    Quantity
    2 x high-frequency speaker + 2 x full-frequency speaker
    Maximum power consumption
    40 W
    Microphone
    Sound pickup angle
    180°
    Sound pickup distance
    12 m
    Frequency domain
    80 Hz to 20 kHz
    Optimized sound pickup
    Sound location, echo cancellation, and automatic gain control
    Meeting
    Native meeting apps
    Huawei Cloud Meeting and WeLink
    Dual streams (audio/video + data sharing)
    1080p30fps+1080p30fps/4K8fps
    BYOM
    AI function
    Auto-Framing
    Intelligent tracking
    DNN-based dereverberation
    System
    CPU
    8-core
    RAM
    8 GB
    Flash
    64 GB
    OS
    HarmonyOS, Windows*
    Security
    Embedded encryption chip that supports H.235, STARTTLS, TLS, SRTP encryption, Chinese cryptographic algorithms, secure boot, and TEE
    Language
    Simplified Chinese, English, French, Japanese, Arabic, and Spanish
    * An OPS plug-in computer is required for Windows.
    Wireless connection
    Wi-Fi module
    Wi-Fi 6
    Wi-Fi frequency
    2.4 GHz + 5 GHz
    NFC
    Port
    Video input
    HDMI cable x 1
    Video output
    HDMI cable x 1
    Audio input
    3.5 mm (line-in) x 1
    HD-AI x 1
    Audio output
    3.5 mm (line-out) x 1
    Other ports
    USB Type-A 3.0 x 3
    USB Type-C x 1
    RJ45 (10/100/1000 Mbit/s LAN) x 1
  • Model
    IHB2-65SU
    Product Dimensions (H x W x D)
    892.5 x 1484.5 x 91.6 mm
    Package Dimensions (H x W x D)
    1050 x 1650 x 220 mm
    Gross Weight
    42.5kg
    Net Weight
    35.0kg
  • Model
    IHB2-86SU
    Product Dimensions (H x W x D)
    1157.0 x 1953.0 x 91.8 mm
    Package Dimensions (H x W x D)
    1300 x 2090 x 250 mm
    Gross Weight
    73.5kg
    Net Weight
    62.0kg
Learn More

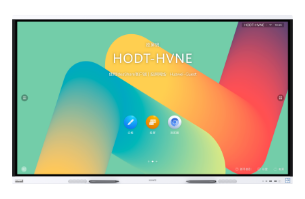

HUAWEI IdeaHub Board 2

Bring digital to every classroom for interactive teaching and immersive learning Request for a quote
Dedicated Pen

With a dedicated stylus tip, the pen is wear-resistant and durable, with an anti-slip design for a comfortable grip..

Openness and Compatibility

With openness and third-party compatibility integral to IdeaHub's design philosophy, this helps to pull down technological barriers, allowing educators to focus on what they do best: engaging students.

Stable Projection

Featuring dual WI-FI and a stable anti-interference design, IdeaHub Board 2 allows for reverse control, including page turning and annotation for truly flexible interaction.

Diverse Ports

USB Type-C and Type-A 3.0 ports on the front panel provide easy access. Rear panel ports include HDMI, Type-B, COM, and RJ45, allowing for a range of devices to be connected, from webcams and microphones to high-speed document scanners, for cross-device collaboration.

Switch OS

One-touch switchover between Android and Windows4 Operating Systems enhances compatibility with a full range of different teaching apps.

Product Specifications

  • HUAWEI IdeaHub Board 2 65-inch

    Component
    Device x 1
    65-inch
    Stylus pens x 2
    PET pen tip/anti-skid pen body/magnetic attachment
    Cable
    Power cable x 1
    OPS
    Optional (i5/i7)
    Rolling stand
    Optional (support interface complies with the VESA standard)
    Wall mounted bracket
    Optional (support interface complies with the VESA standard)
    IdeaHub Controller
    Optional
    Screen
    Resolution
    4K UHD (3840 x 2160)
    Viewing Angle
    178°
    Glass Hardness
    ≥ 7H
    Screen Lamination
    Zero-gap bonding
    Color Depth
    10-bit (8-bit + FRC)
    Backlight Type
    D-LED
    Number of Touch Points
    20
    Screen Refresh Rate
    60 Hz
    Aspect Ratio
    16:9
    Eye Protection
    Optical Anti-Blue Light
    Anti-glare
    Adaptive Brightness
    TÜV Rheinland Low Blue Light (Hardware Solution) Certification
    TÜV Rheinland Eye Comfort Certification
    Writing
    Writing Latency
    25 ms
    Precision
    ±1mm
    Whiteboard Saving Mode
    QR code scanning/Email/Local disk/USB flash drive
    Intelligent Writing
    Projection
    Projection Mode
    IdeaShare App
    IdeaShare Key
    Projection through the drop-down menu*
    HDMI, Type-C wired projection
    * Mobile phone operating systems that support manual projection: EMUI 10.1.0 or later, Magic UI 3.1 or later.
    Wireless Projection Performance
    Up to 4K30
    Wired Projection Performance
    4K60
    Supported OS
    Android/Windows/iOS/macOS
    Annotate During Projection
    Reverse Control
    Wi-Fi
    Dual-Wi-Fi Module
    Wi-Fi Frequency
    2.4 GHz/5 GHz
    Speaker
    Frequency Domain
    100 Hz–20 kHz
    Speaker Unit
    2 x full frequency speaker + 2 x high frequency speaker
    Stereo
    System
    CPU
    4-core
    RAM
    4 GB
    Flash
    32 GB*
    OS
    Android 9.0/Windows 10**


    **Available storage space will be less than the stated value as pre-installed software takes up a certain amount of space. **To use Windows 10, an OPS plug-in computer is required.
    Terminal interface
    Front-Panel Ports
    Type-C x 1
    Type-A x 2
    Rear-Panel Ports
    Type-A x 1;
    Type-B (reverse control) x 1
    HDMI (input) x 2
    HDMI (output) x 1
    COM port x 1
    RJ45 network port x 1
    80-pin OPS port x 1
    3.5 mm (line-in) x 1
    3.5 mm (line-out) x 1
    • Model
      IHB2-65SU
      Product Dimensions (H x W x D)
      892.5 x 1484.5 x 91.6 mm
      Package Dimensions (H x W x D)
      1050 x 1650 x 220 mm
      Gross Weight
      42.5kg
      Net Weight
      35.0kg
    • Model
      IHB2-86SU
      Product Dimensions (H x W x D)
      1157.0 x 1953.0 x 91.8 mm
      Package Dimensions (H x W x D)
      1300 x 2090 x 250 mm
      Gross Weight
      73.5kg
      Net Weight
      62.0kg
  • HUAWEI IdeaHub Board 2 86-inch

    Component
    Device x 1
    86-inch
    Stylus pens x 2
    PET pen tip/anti-skid pen body/magnetic attachment
    Cable
    Power cable x 1
    OPS
    Optional (i5/i7)
    Rolling stand
    Optional (support interface complies with the VESA standard)
    Wall mounted bracket
    Optional (support interface complies with the VESA standard)
    IdeaHub Controller
    Optional
    Screen
    Resolution
    4K UHD (3840 x 2160)
    Viewing Angle
    178°
    Glass Hardness
    ≥ 7H
    Screen Lamination
    Zero-gap bonding
    Color Depth
    10-bit (8-bit + FRC)
    Backlight Type
    D-LED
    Number of Touch Points
    20
    Screen Refresh Rate
    60 Hz
    Aspect Ratio
    16:9
    Eye Protection
    Optical Anti-Blue Light
    Glare Prevention
    Adaptive Brightness
    TÜV Rheinland Low Blue Light (Hardware Solution) Certification
    TÜV Rheinland Eye Comfort Certification
    Writing
    Writing Latency
    25 ms
    Precision
    ±1mm
    Whiteboard Saving Mode
    QR code scanning/Email/Local disk/USB flash drive
    Intelligent Writing
    Projection
    Projection Mode
    IdeaShare App
    IdeaShare Key
    Projection through the drop-down menu*
    HDMI, Type-C wired projection
    Wireless Projection Performance
    Up to 4K30
    Wired Projection Performance
    4K60
    Supported OS
    Android/Windows/iOS/macOS
    Annotate During Projection
    Reverse Control
    Wi-Fi
    Dual-Wi-Fi Module
    Wi-Fi Frequency
    2.4 GHz/5 GHz
    Speaker
    Frequency Domain
    100 Hz–20 kHz
    Speaker Unit
    2 x full frequency speaker + 2 x high frequency speaker
    Stereo
    System
    CPU
    4-core
    RAM
    4 GB
    Flash
    32 GB*
    OS
    Android 9.0/Windows 10**


    *Available storage space will be less than the stated value as pre-installed software takes up a certain amount of space. **To use Windows 10, an OPS plug-in computer is required.
    Terminal interface
    Front-Panel Ports
    Type-C x 1
    Type-A x 2
    Rear-Panel Ports
    Type-A x 1;
    Type-B (reverse control) x 1
    HDMI (input) x 2
    HDMI (output) x 1
    COM port x 1
    RJ45 network port x 1
    80-pin OPS port x 1
    3.5 mm (line-in) x 1
    3.5 mm (line-out) x 1
    • Model
      IHB2-65SU
      Product Dimensions (H x W x D)
      892.5 x 1484.5 x 91.6 mm
      Package Dimensions (H x W x D)
      1050 x 1650 x 220 mm
      Gross Weight
      42.5kg
      Net Weight
      35.0kg
    • Model
      IHB2-86SU
      Product Dimensions (H x W x D)
      1157.0 x 1953.0 x 91.8 mm
      Package Dimensions (H x W x D)
      1300 x 2090 x 250 mm
      Gross Weight
      73.5kg
      Net Weight
      62.0kg
  • Model
    IHB2-65SU
    Product Dimensions (H x W x D)
    892.5 x 1484.5 x 91.6 mm
    Package Dimensions (H x W x D)
    1050 x 1650 x 220 mm
    Gross Weight
    42.5kg
    Net Weight
    35.0kg
  • Model
    IHB2-86SU
    Product Dimensions (H x W x D)
    1157.0 x 1953.0 x 91.8 mm
    Package Dimensions (H x W x D)
    1300 x 2090 x 250 mm
    Gross Weight
    73.5kg
    Net Weight
    62.0kg
Learn More

Get In Touch With Our HUAWEI Certified Experts!

Choose No file selected

Your Business Deserves What's Best for it to Flourish and Stay Ahead of the Competition. Let VisionTech Be a Part of Your Business Transformation Journey!

Accentuate Business Outcomes With Our Experienced IT Team.

Forthright IT solutions to your complex business challenges

Our dedicated team focuses on customer-centric IT solutions that bring revenue to your business. At VisionTech, we deliver best in class strategies and solutions that give your business a new, revived and competitive outlook. With your long-term business success in mind, our team not only looks after your current needs but also helps you in future by providing scalable solutions.

To get you onboard with us, we provide consulting where we understand your needs as a business and make you aware of our solutions that are sure to help you. Once you are satisfied with our detailed services and solutions, we activate the process where we dive deep into your business requirements and come up with tailored solutions catering exactly to your business and meeting your demands while keeping your business goals aligned. Our last step is integration and seamless migration of your data towards newer technological solutions without any downtime.

Request a Quote
x
Request a Quote
Choose No file selected
